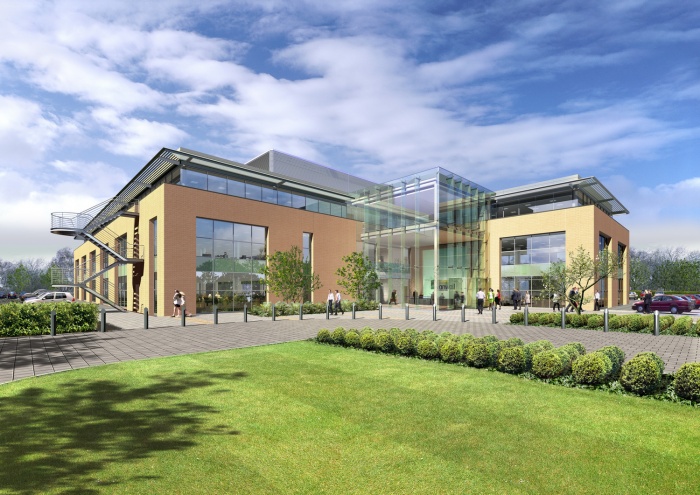

Mecserve was appointed to assist with the development of five separate three-storey office buildings offering 290,600 ft² of office accommodation.
The project was a phased development over a number of years with several buildings being constructed concurrently.
The mechanical services installations generally comprised four pipe fan coil air conditioning, utilising chilled water and low pressure hot water, domestic water services, fresh air ventilation, sanitation, internal rainwater distribution and provision of a mechanical plant BEMS (Building Energy Management System).
The electrical services installations generally comprised main and sub main distribution of low voltage electricity, lighting to office, core and external car park areas, small power to core area, addressable fire detection throughout the buildings, cableways for future telecommunications services and building lightning protection systems.
Mecserve was also commissioned to design the mechanical and electrical services for the tenants' 'fitting out' of Unit 5 which was completed during the general 'base build' construction works on the site.
Client: Frogmore Developments
Architect: Reid Architects
Quantity Surveyor: Gardiner and Theobald
Structural Engineer: Waterman Partnership
Main Contractor: Bryant Construction
Project Imagery: © Tom Scott
